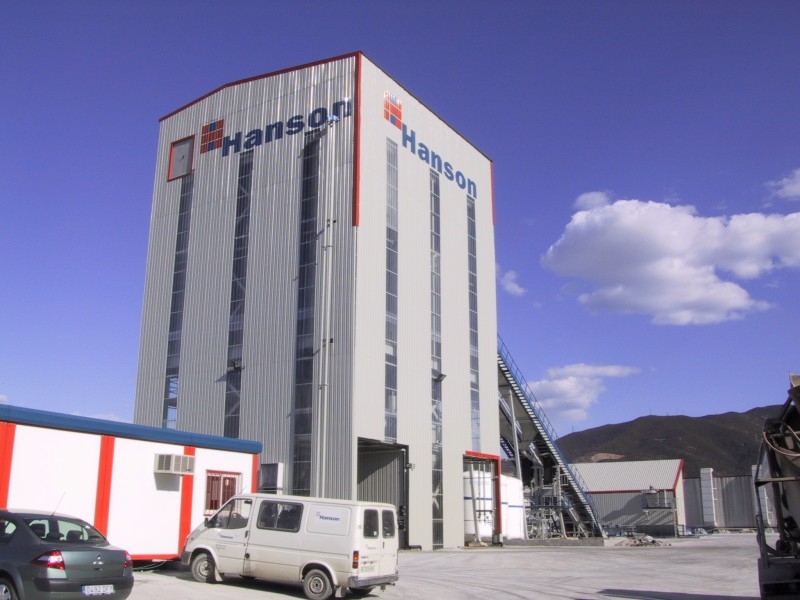

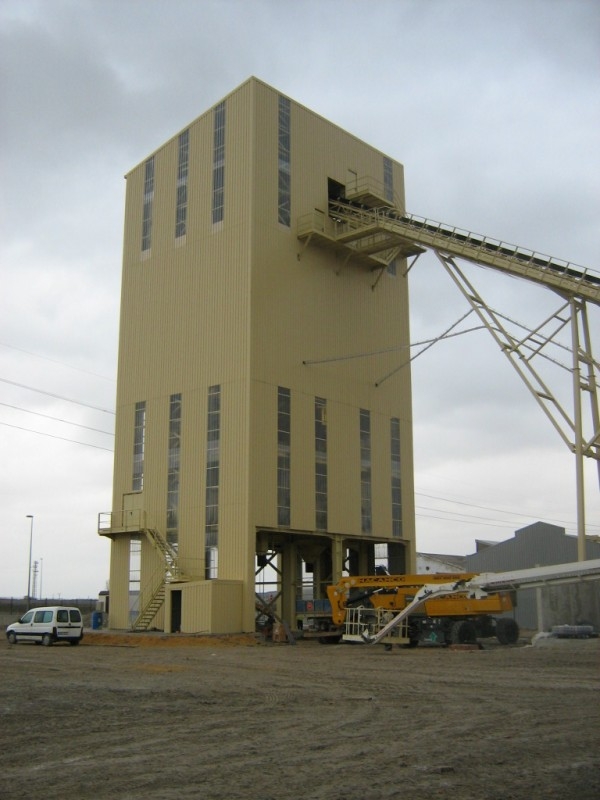

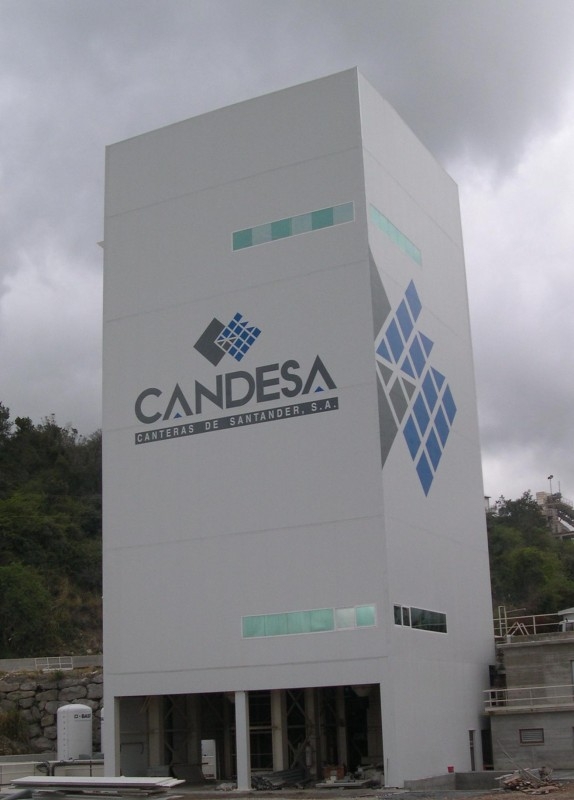

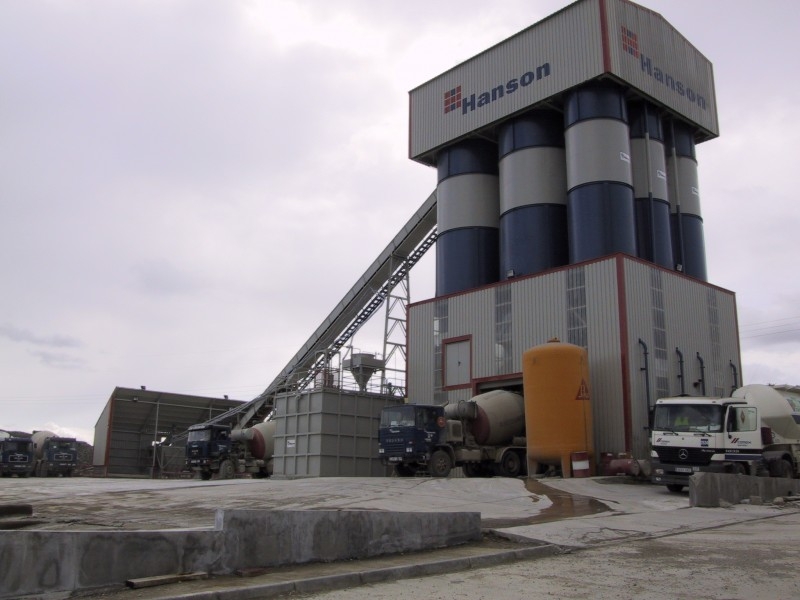

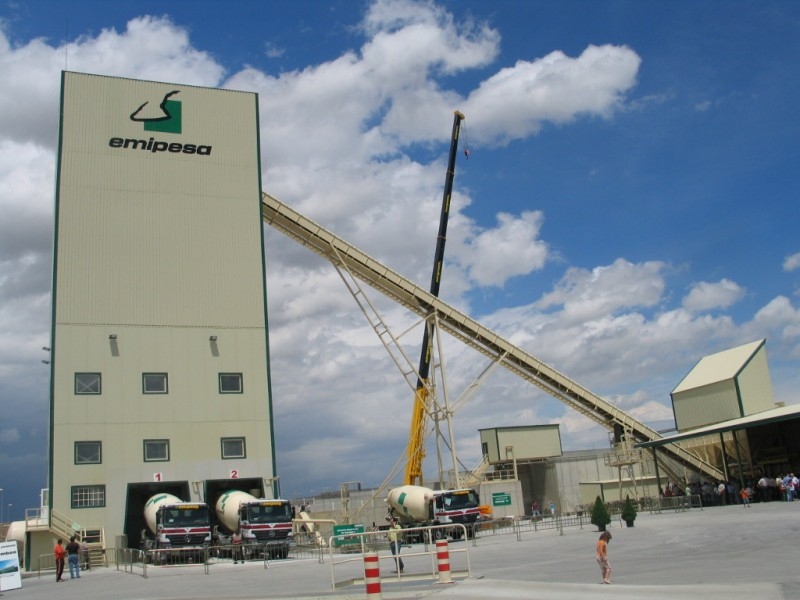

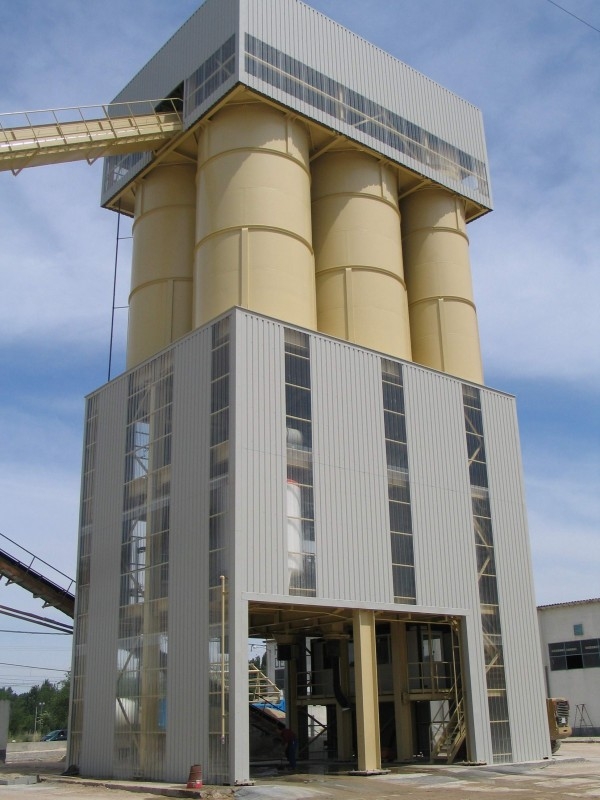

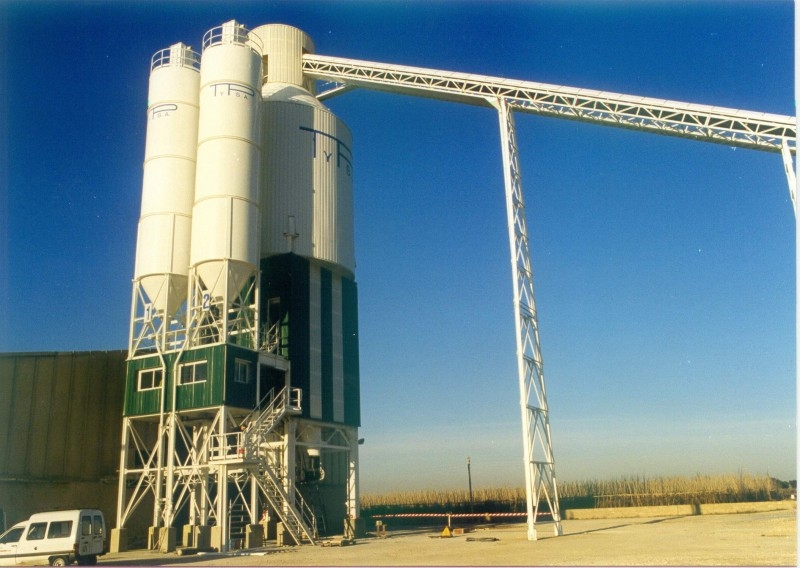

Vertical plants V-DHA

The vertical concrete batching plants are characterised by stockpiling the classified aggregate at the top of the installation, above the mixing level. In this way we eliminate the time it takes to raise the aggregate after its dosing, achieving high production yield.

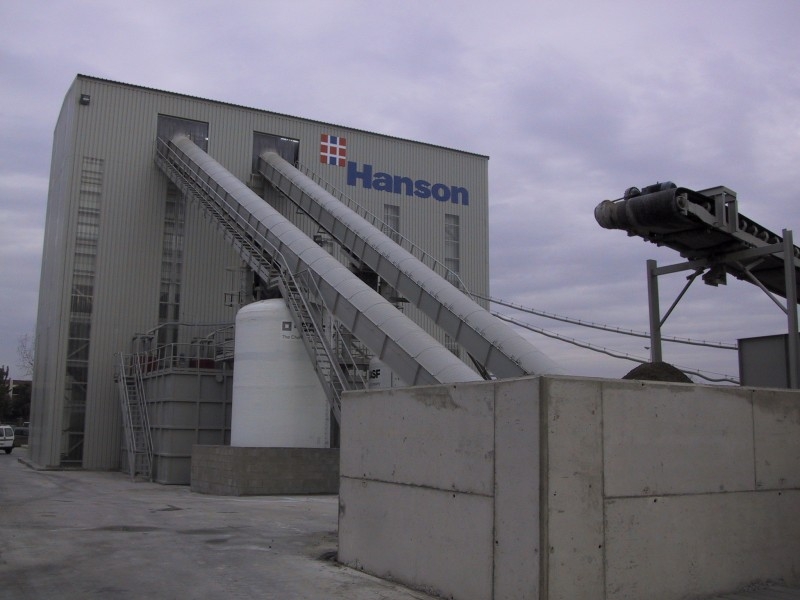

The aggregate is raised by belt conveyors or by a bucket elevator, in those cases where space saving is a must.

General characteristics of the ready mix concrete batching plants Series V-DHA:

Elevation system Belt/Bucket elevator
Aggregate stockpiling system Hoppers at the top
Stockpiling capacity 400-1.000 m3
Number of aggregates 4-8
Number of cement silos 1-6
Unitary capacity of the silos 40-200 t
Aggregate dosing Aggregate weighing hopper
Cement dosing Cement scale
Water dosing Water scale
Cement transport By screw conveyor
Type of mixer Planetary / Horizontal D.S.
Mixing capacity 2 – 4,5 m3
Dry mix    Optional
Additive scale Optional
Consistency measuring device Optional
Fibre dosing device Optional
Computer control system Included



MODEL V-DHA 80 V-DHA 120 V-DHA 150 V-DHA 200 V-DHA 250 V-DHA 350 V-DHA 500
Production (m3/h)
60 90 120 180 240 360 480
Cycle capacity (m3) 2 3 4 2 x 3 2 x 4 4 x 3 4 x 4
